Setting up a device for access control/security

Pre-requisite:

You must have Manage roles to Devices, Employee(s) and Employee Group(s) under the users Tab

• Set up Area(s)

• Set up Employee Group(s)

Step 1: Set up Areas and assign data sets to specific employee group

Create the Employee group: Navigate to Manage | Employees | Group(s) - create a group

Click New to create a new group

Create the Group: Navigate to the General tab - Name: provide a name for your group of employees

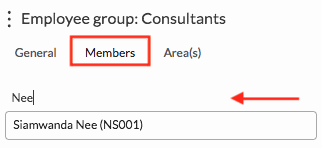

Create the Group: Navigate to the Members tab - Search and select the employee(s) that will belong to his group

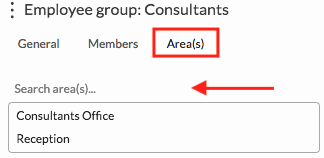

Create the Group: Navigate to the Area(s) tab - Search and select the area(s) that will belong to his group

Note: If no areas populate, proceed to the next step

Create the Areas: Navigate to Manage | Device(s) | Area(s) - create a new area

Click New to create a new area

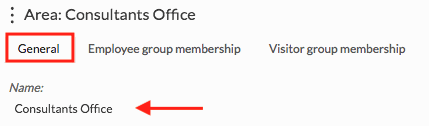

Navigate to the General tab: - Name: name the area

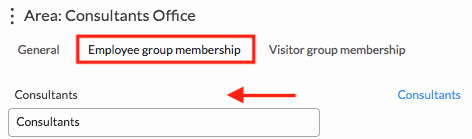

Navigate to the Employee group membership tab: - Select the employee group that should have access to this area

Note: If no data populates, ensure the pre-requisites above have been met and you have completed Step 1 above

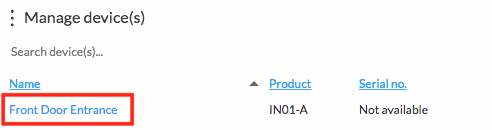

Step 2: Select the device you would like to set up as a security device

Note: Areas created in Step 1

Step 3: Navigate to Clock status & Area(s)

• Come from area: This determines the area an employee comes from

• Go to area: This determines the area an employee goes to

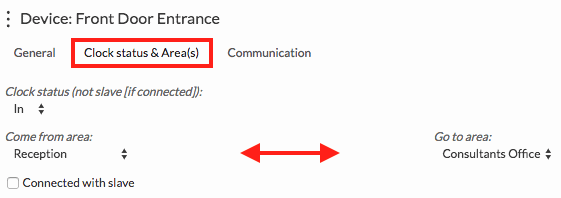

Note: Set up seen here is for a stand alone device used for Security purposes

• All states will be determined by the status selected

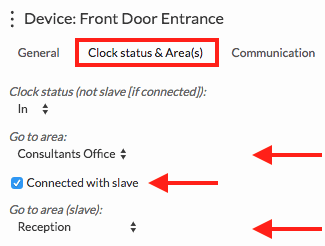

Note: Set up seen here is for a device connected with a slave device used for Security or Time and attendance and Security purposes

• States of the master device will be determined by the status selected

• Firmware must be updated accordingly to allow communication with the slave device
